Crafting the Ideal Horse Stall: A Comprehensive Guide

Last updated: September 16, 2024

By: Miles HenryFact Checked

As a seasoned horse owner in Louisiana, I’ve learned that a well-designed stall is more than just a place to house your equine companion; it’s their sanctuary, impacting their health, comfort, and overall well-being. The sweltering summers and humid conditions here present unique challenges, but with careful planning, you can create a haven for your horse.

Let’s dive into the critical aspects of stall design, from size and layout to ventilation and safety, ensuring your horse’s home is as comfortable and secure as possible.

Stall Size & Layout: The Foundation of Comfort & Safety

Size matters when it comes to horse stalls. While the American Association of Equine Practitioners (AAEP) recommends a minimum size of 10’x10′, I firmly believe in providing more generous space, especially for larger breeds or horses that spend significant time indoors. In my Louisiana barn, I’ve found that 12’x12′ stalls strike a good balance, offering ample room for movement while minimizing the risk of injury during playful antics.

Equally important is the stall’s layout. Orienting stalls to take advantage of prevailing winds can significantly enhance natural ventilation, a crucial factor in our hot and humid climate. Additionally, consider incorporating Dutch doors or windows with bars to boost airflow further while maintaining security.

The height and material of your stall walls also play a role in comfort and safety. Most horse stalls are built with 7.5-foot walls to prevent horses from getting their legs caught on the top. Stables are typically open overhead, but ensure at least a 10-foot clearance for rafters and light fixtures. This height provides adequate ventilation and is high enough so your horse doesn’t hit its head if it rears up.

Wood and metal are common materials for stall walls, each with its pros and cons. Wood offers a more traditional aesthetic and can be warmer in colder climates, but it’s susceptible to chewing and requires more maintenance. Metal is durable and easy to clean but can be noisy and conduct heat. Consider your horse’s temperament and the climate when choosing the material and height of your stall walls.

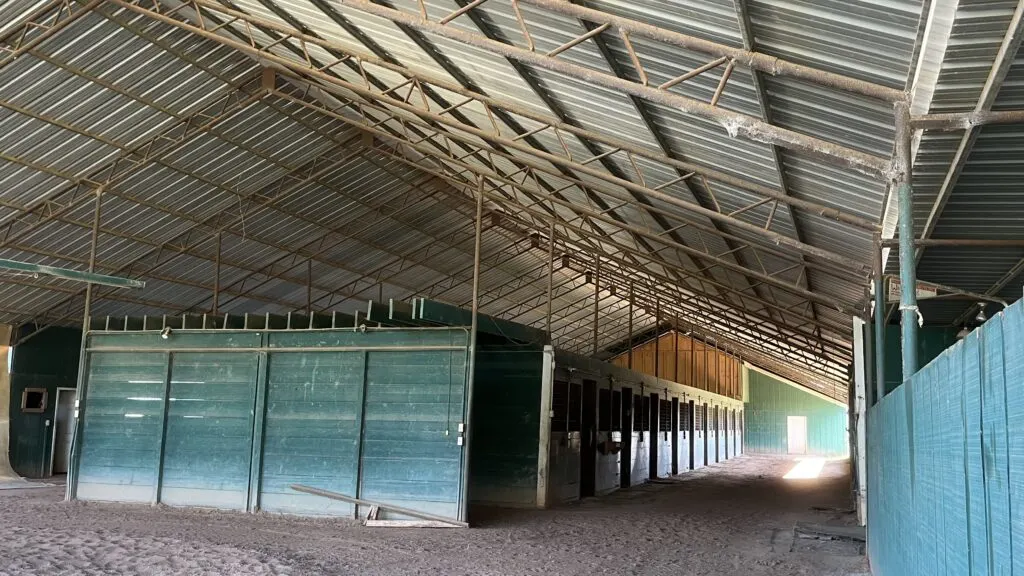

Ventilation & Air Quality: A Breath of Fresh Air

Effective ventilation is paramount, especially in Louisiana’s sweltering summers. Stale air, dust, and ammonia buildup can compromise respiratory health and lead to discomfort. My barn incorporates large ceiling fans in each stall, exhaust fans in the aisles, and strategically placed windows and vents to facilitate continuous airflow. If you’re interested in barn fans, check out this article: 7 Best Horse Barn Fans For Stalls and Aisles.

Regular cleaning and maintenance of these systems are essential. The USDA’s National Agricultural Library provides detailed resources on proper ventilation for livestock housing, including horses.

Stall Doors: The Gateway to Safety and Security

The stall door serves as an entrance and a protective barrier for your horse. Choosing the right door and ensuring its proper installation is paramount for your horse’s well-being.

Door Width: Ensuring Comfortable Access

A standard stall door should be at least 4 feet wide for easy entry and exit. For larger breeds or horses prone to anxiety, a wider door (up to 5 feet) may be beneficial. A wide door also facilitates more effortless movement of equipment and supplies in and out of the stall.

Types of Stall Doors: Balancing Functionality & Safety

Several types of stall doors are available, each with its advantages and considerations:

• Swinging Doors:
  • Traditional and widely used.
  • Ensure they open outwards to prevent a horse from getting trapped against the wall if they panic.
  • Consider adding a yoke at the top to increase ventilation and visibility.
• Sliding Doors:
  • Save space and are less likely to be damaged by kicking or leaning.
  • Ensure the track is well-maintained to prevent sticking or derailment.
• Dutch Doors:
  • Offer the option of opening just the top half for ventilation and interaction while keeping the bottom half closed for safety.

Latches: Secure and User-Friendly

The latch is a critical component of stall door safety. It should be secure enough to prevent horses from opening it but easy for humans to operate, even in emergencies.

• Slide Bolts:
  • Common and reliable.
  • Ensure they are sturdy and well-maintained to prevent bending or breaking.
• Gravity Latches:
  • Automatically latch when the door closes, providing added security.
  • Especially useful in barns with children.
• Pin Latches:
  • Durable and can be designed to be out of reach of horses, further enhancing safety.

Safety First: Additional Considerations

• Materials: Choose a door material that is strong, durable, and resistant to chewing or kicking. Wood and metal are popular choices.
• Visibility: Incorporate mesh or bars into the door design to allow for airflow and visibility, reducing the risk of horses feeling isolated.
• Panic Release: In case of emergency, ensure you have a quick-release mechanism on the door or a readily accessible way to open it from the outside.

By carefully considering these factors when choosing and installing your stall doors, you can provide a safe and secure environment for your horse while ensuring easy access and good ventilation. Remember, a well-designed stall door is not just a functional element but also a vital component of your horse’s overall well-being.

Lighting: Illuminating Your Horse’s Haven

Good lighting in a stable is essential for various reasons, impacting both horse and human safety and well-being. Natural light is a wonderful asset, providing horses with vital exposure to sunlight, which helps regulate their circadian rhythms, promotes a sense of calm, and contributes to a healthy coat.

Ensure windows are strategically placed to maximize sunlight while minimizing glare and heat buildup. Remember, safety first! Windows should be high enough or protected to prevent horses from injury.

When natural light isn’t sufficient, artificial lighting steps in. Whether grooming your horse, conducting a health check, or simply cleaning the stall, adequate lighting is crucial for visibility and safety. When installing electrical wiring, prioritize safety by placing wires out of reach, at least 8 feet high, and using conduits to protect them from rodents.

Opt for fixtures with protective coverings, like cages, to prevent breakage. Install fixtures strategically on the front and side walls to minimize shadows and ensure the entire stall is well-lit.

Consider using energy-efficient LED bulbs, which reduce electricity costs and provide a bright, clear light without excessive heat. Motion-activated lighting in the aisles can be helpful, providing illumination only when needed, further enhancing safety and energy conservation.

By paying careful attention to natural and artificial lighting, you can create a bright and welcoming environment for your horse, promoting their health, comfort, and overall well-being.

Flooring: The Unsung Hero of Stall Comfort & Health

Choosing the right flooring can significantly impact your horse’s comfort and joint health. Concrete, though durable, can be hard on hooves and joints and tends to retain heat and moisture.

I’ve personally had great success with interlocking rubber mats, which provide excellent traction and impact absorption and are easier to clean and disinfect—vital in humid conditions. Remember, proper drainage beneath the mats is crucial in preventing moisture buildup and associated problems like thrush.

The LSU AgCenter’s Horse Publications offer valuable insights into various flooring options and their suitability for different environments.

Essential Stall Accessories: Equipping Your Horse’s Haven

In addition to the foundational elements of stall design like size, flooring, and ventilation, several accessories are vital for creating a safe, comfortable, and functional space for your horse.

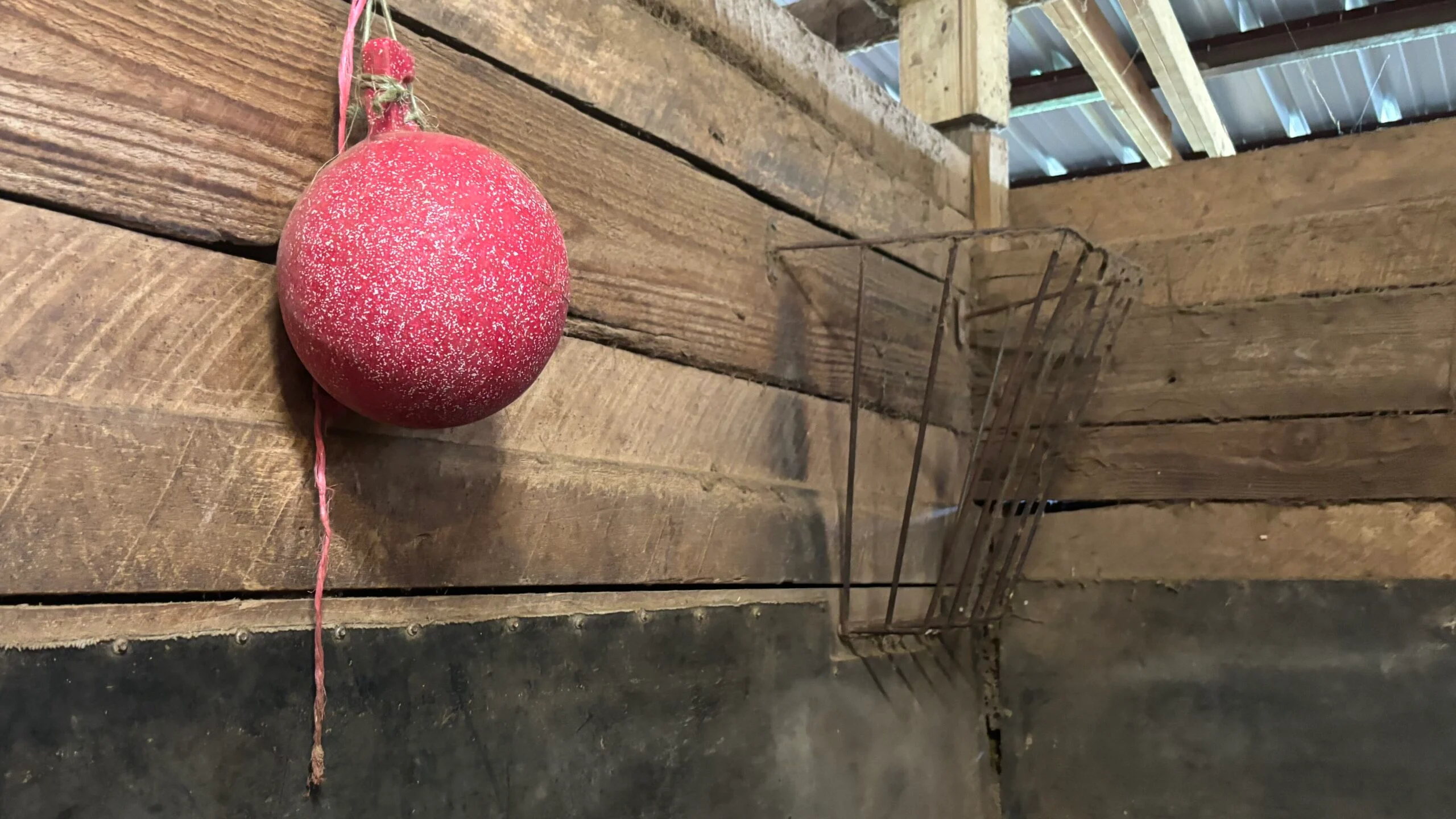

Hayracks: Prioritizing Cleanliness and Safety

Horse owners debate the best way to feed hay in a stall. While feeding hay on the ground may seem natural, it can lead to contamination from urine and feces, particularly in a stall environment. As an experienced horse owner, I strongly recommend using a hay rack to keep the hay clean and reduce the risk of health issues.

When installing a hayrack, position it at the height of your horse’s withers. This placement is high enough to prevent your horse from getting its feet caught, but low enough to minimize hay dust falling into its face. Opt for a hayrack with smooth corners to avoid any potential injuries.

Hay nets or bags are also excellent alternatives, offering similar benefits and portability. I particularly like using hay nets because they’re easy to take down and use in your horse trailer or anywhere else you may need them. Some hay nets are even designed for slow feeding, encouraging natural grazing behavior and prolonging feeding time.

Tie Rings: A Safe and Secure Tethering Point

Tie rings are indispensable in a stable. They allow you to safely secure your horse for grooming, tacking up, or temporary confinement. Choose sturdy tie rings that are securely installed into the stall wall. Position them at a comfortable height for your horse, typically around shoulder level. Various styles of tie rings are available, so select one that suits your needs and preferences.

Feed and Water Buckets: Convenient and Hygienic Placement

Properly securing feed and water buckets to the stall wall is essential for both convenience and hygiene. A simple yet effective method is using a double-ended snap and an eyehook. This combination allows for easy bucket removal, which is crucial for regular cleaning. Position the eyehook so the bucket’s rim is about chest high on your horse.

Remember to separate feed and water buckets to prevent feed contamination. Automatic waterers can be an option, but I prefer to check on my horses regularly and refill their water buckets. This allows me to monitor their water intake and overall well-being.

Frequently Asked Questions about Horse Stalls.

Conclusion

Creating a safe, comfortable, and enriching stall environment goes far beyond aesthetics; it’s about providing your horse with a sanctuary that supports their physical and mental well-being. Whether it’s offering refuge from a sudden Louisiana downpour, facilitating recovery from an injury, or managing social dynamics within a herd, a well-designed stall is an invaluable asset for any horse owner.

Remember, each horse is unique, so pay attention to their needs and preferences. By incorporating these design principles and staying informed about the latest best practices, you can ensure your horse’s stall is a haven where they can thrive.

Now it’s your turn! What are your top tips for creating the perfect horse stall? Share your insights and experiences in the comments below – let’s create a community of knowledge and support for horse owners everywhere!

My favorite is the hide-away type. This ring falls inside a concave, so it’s not protruding from the wall. There are also tie rings that drop flat—your goal is to have the fewest items in the stall that can cause injury. So when you choose a spot for your tie rings, put it at least as high as your horse’s withers and away from their feed and water buckets.
