Horse Barn Design for Air Quality: A Complete Guide

Last updated: January 1, 2026

By: Miles HenryFact Checked

How smart design prevents respiratory disease and saves thousands in vet bills

I’ll never forget watching a promising Thoroughbred gelding develop a chronic cough that ended his racing career — all because of poor barn ventilation. After 25 years, I’ve learned that exceptional horse barn design for air quality is the real key to respiratory health, not expensive treatments.

Poor air quality doesn’t just cause coughing. It systematically destroys athletic performance and costs owners thousands in preventable vet bills. The three most devastating conditions I see are:

• Recurrent Airway Obstruction (RAO) — “heaves” that can slash oxygen uptake by 40% (AAEP Guidelines)
• Inflammatory Airway Disease (IAD) — chronic “barn cough” that saps stamina and delays recovery
• Exercise-Induced Pulmonary Hemorrhage (EIPH) — lung bleeding, with poor air quality greatly increases the risk (The Horse)

The solution isn’t medication or management tricks. It’s designing barns that naturally maintain clean air. When I retrofitted my own facility using the principles in this guide, ammonia levels dropped from a dangerous 15 ppm to a safe 3 ppm. Every cough disappeared within weeks.

Here’s exactly how to design — or retrofit — your barn for optimal respiratory health.

The Foundation: Four Essential Steps to Clean Air

Every healthy horse barn requires a systematic approach. These four steps ensure optimal air quality from day one:

1. Climate-Specific Design — Solutions must match your region’s unique challenges
2. Proper Ventilation Rates — Calculated airflow that actually works
3. Strategic Layout — Positioning that keeps air moving and dust minimal
4. Quality Materials — Flooring and bedding that fight contamination at the source

Get these right from the start, and you’ll prevent most respiratory issues before they begin. Download our Barn Air Quality Cheat Sheet.

Step 1: Climate-Specific Horse Barn Design for Air Quality

A barn built for Arizona’s dry heat will trap deadly humidity on the Gulf Coast. Start with your climate’s biggest challenge:

Climate Zone	Primary Challenge	Essential Design Solutions
Humid (Gulf Coast) 💧	90%+ humidity, frequent storms	Mechanical fans (6–8 ACH) • North-south orientation • Concrete floors + rubber mats
Cold (Northern Plains) ❄️	Sub-zero winters, snow loads	R-15 insulated walls • Adjustable vents for winter • Heated water systems
Dry (Southwest) 🏜️	Dust storms, extreme heat	MERV 11 air filters • Strategic shade structures • Gravel bases to reduce dust
Pacific Northwest ☔	Constant moisture, mold risk	Dehumidification systems • Mold-resistant materials • Superior drainage design

Pro Tip: Use NOAA’s wind data to align your barn with prevailing breezes. This simple orientation change can cut mechanical ventilation costs by 30-50% (Penn State Extension). In consistently windy areas (>8 mph average), natural ventilation can provide 2-3 ACH, reducing mechanical requirements by 30-50%. For example, a barn oriented perpendicular to 12 mph prevailing winds might only need two 24-inch fans instead of four.

Step 2: Calculate Ventilation That Actually Works

Most barns are under-ventilated because owners guess instead of calculate. The AAEP recommends 6–8 air changes per hour (ACH) to keep ammonia below safe levels.

The Formula That Saves Lives

CFM Required = (Barn Volume × ACH) ÷ 60

Two Real World Examples:

• 30′ × 40′ × 12′ barn = 14,400 cubic feet
• Target: 6 ACH
• Calculation: (14,400 × 6) ÷ 60 = 1,440 CFM needed

• 20′ × 24′ × 10′ barn = 4,800 cubic feet
• Target: 6 ACH
• Calculation: (4,800 × 6) ÷ 60 = 480 CFM needed

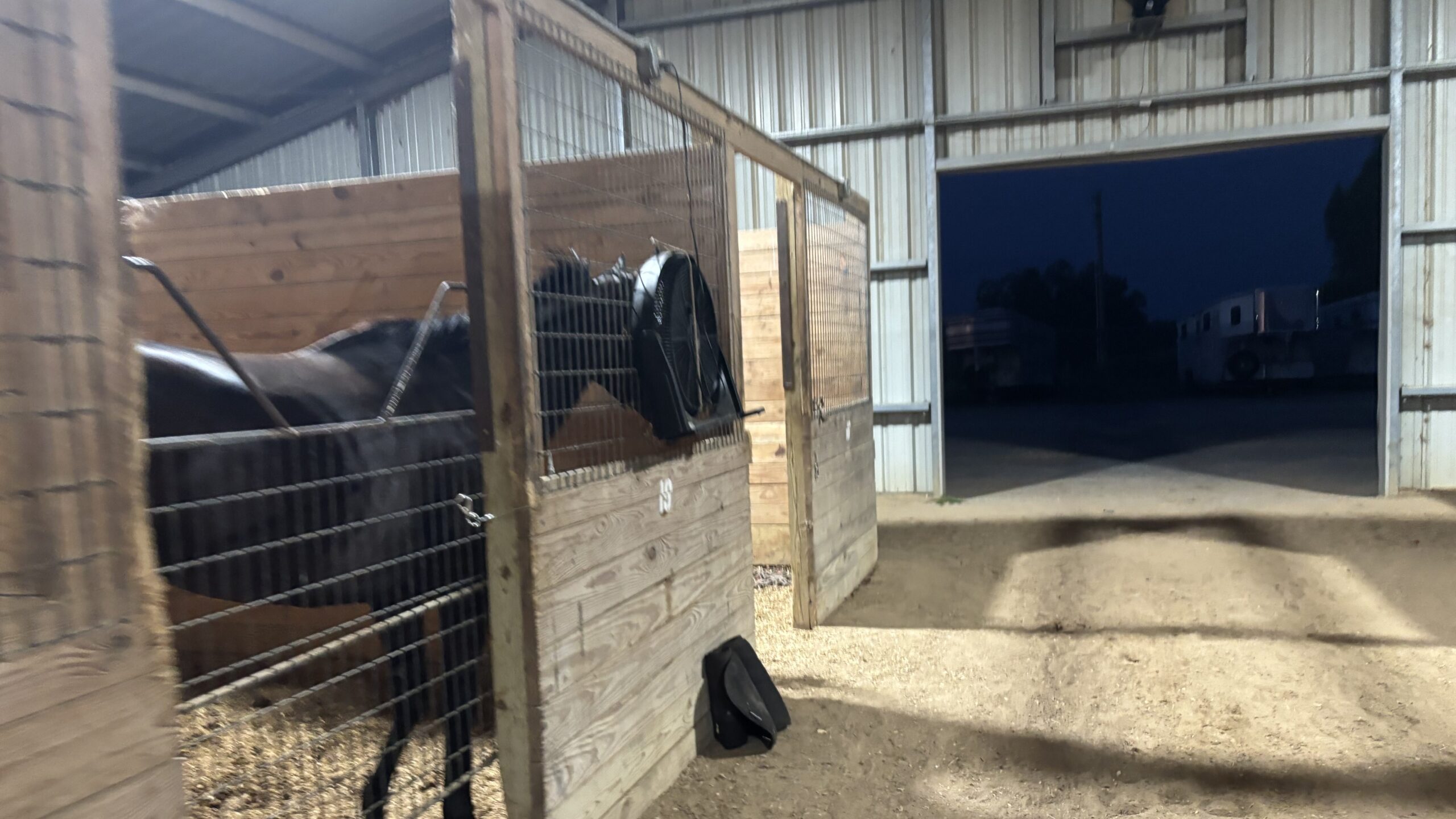

Natural Ventilation First

Before adding fans, maximize free airflow:

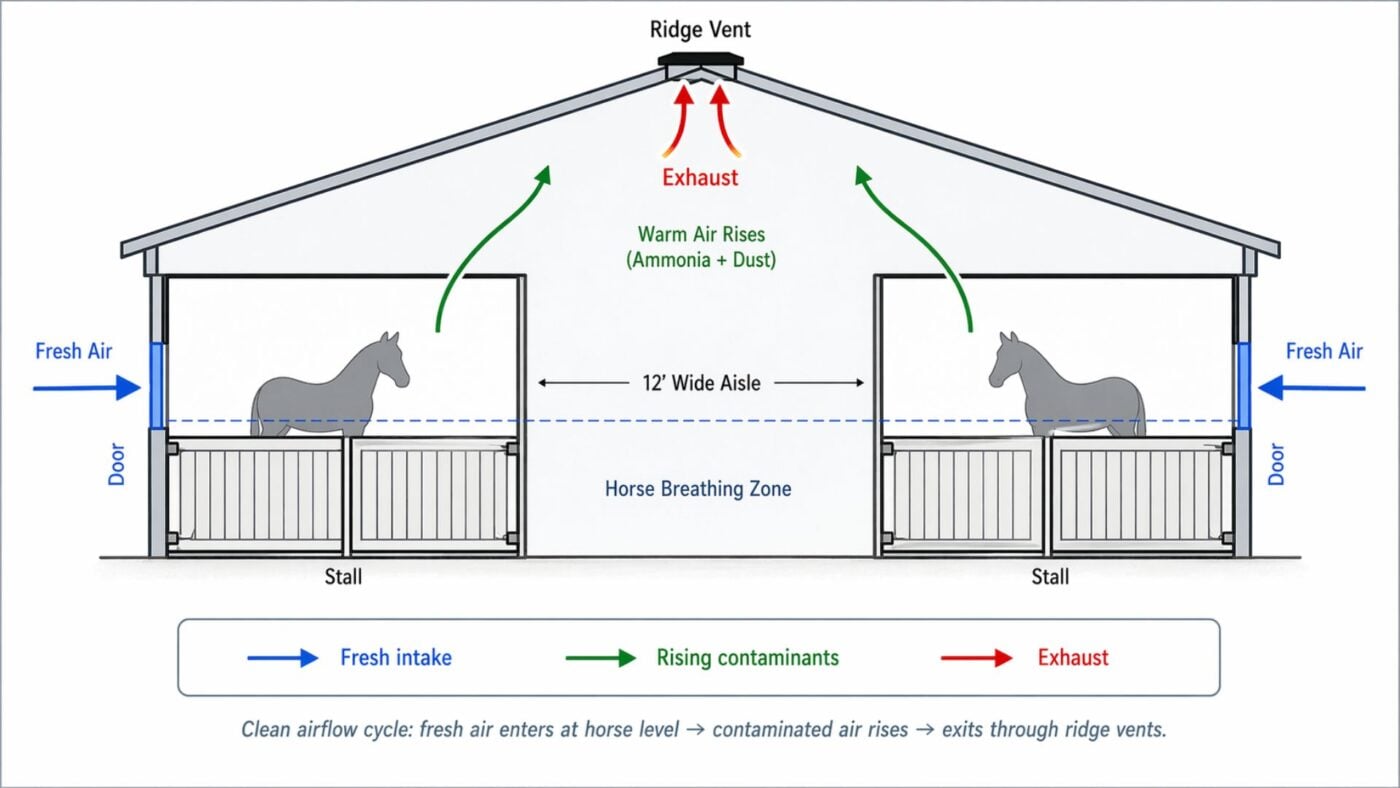

Stack Effect Ventilation:

• Install ridge vents (minimum 1 sq ft per horse, plus additional area for tack rooms and aisles)
• AgriVent systems ($500–$2,000) work reliably in most climates
• Warm, contaminated air rises and exits naturally

Cross-Ventilation Design:

• Position 4×4 ft windows on opposing walls
• Mount 6–8 feet high to stay above horses’ heads
• Align with prevailing winds using local weather data

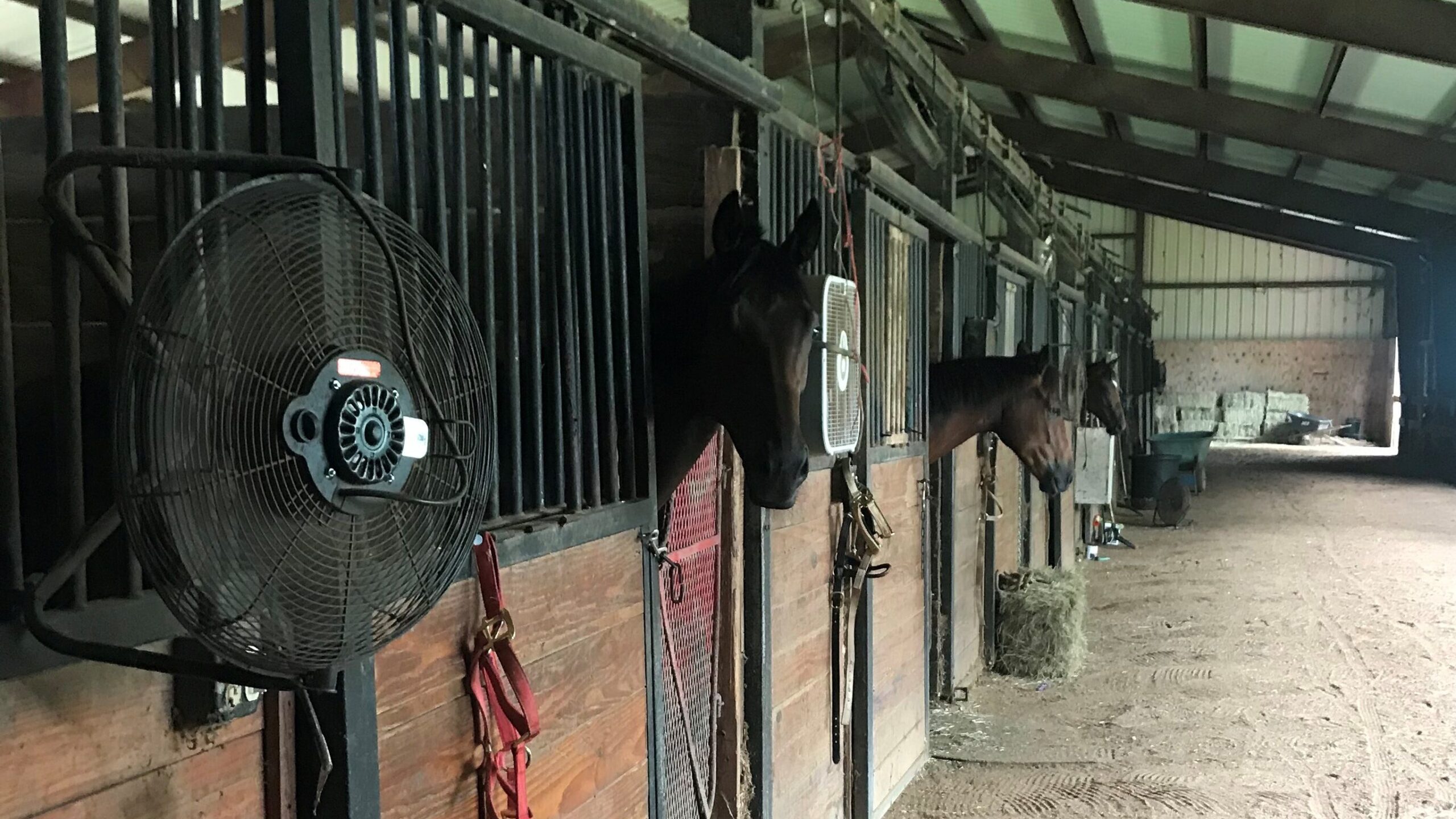

Add Mechanical Systems Strategically

In humid or still climates, supplement with fans:

• Size fans for 1,200 CFM per 10,000 cubic feet
• Use 24-inch diameter fans for optimal efficiency
• Position to work with, not against, natural airflow patterns

See our Horse Barn Fan Guide for specific product recommendations.

Step 3: Layout for Optimal Air Movement

Even perfect ventilation systems fail with poor barn layout. These design principles ensure air flows where it’s needed most:

Critical Layout Elements

Orientation Strategy:

• North-south alignment catches Gulf Coast breezes
• East-west works better in consistently windy regions
• Check NOAA wind roses for your specific location

Door Design:

• 4-foot Dutch doors reduce dust circulation by 20%
• Allow top ventilation while containing horses
• Classic Equine doors ($500–$1,000) are field-proven

Ceiling Height:

• Minimum 10 feet, optimal 12 feet
• Lets contaminated air rise above horses’ breathing zone
• Reduces dust concentration at ground level

Aisle Width:

• 12-foot aisles reduce dust by up to 40%
• Improved air circulation around stalls
• Better equipment access for maintenance

Hay Storage Separation:

• External hay storage cuts stall dust by 70%
• Prevents overhead dust from falling into stalls
• Reduces fire risk and improves access

Explore more barn design insights in our Horse Barn Design Guide for Small Farms.

Case Study: Layout Impact

When I moved hay storage from the barn loft to a separate 20×30 shed, dust levels in stalls dropped dramatically. The $4,000 investment eliminated chronic coughs in two horses and reduced bedding replacement by 30%.

Step 4: Choose Materials That Fight Contamination

Your flooring and bedding choices directly impact daily air quality. Even perfect ventilation can’t overcome materials that generate dust or trap ammonia.

Flooring Performance Comparison

Flooring Type	Dust Control	Ammonia Control	Humidity Resistance
Concrete + Rubber Mats	✅ Excellent	✅ Excellent	✅ Excellent
Packed Gravel	⚠️ Poor	⚠️ Fair	✅ Good
Dirt/Clay	❌ Very Poor	❌ Poor	❌ Poor

Why Concrete + Mats Win:

• Zero dust generation
• Easy urine drainage and cleaning
• Excellent humidity resistance
• Long-term durability in all climates

Bedding That Works

Pair good flooring with low-dust bedding:

• Sweet PDZ pellets ($20/bag) — 60% better ammonia absorption
• Large flake shavings — less dust than fine shavings
• Hemp bedding — naturally antimicrobial, excellent absorption

For detailed product comparisons, see our Best Horse Stall Bedding Guide.

Retrofitting Existing Barns

Don’t have the budget for a complete rebuild? Strategic retrofits can dramatically improve air quality for a fraction of new construction costs.

Proven Retrofit Strategies

Phase 1: Ventilation ($1,500–$3,000)

• Add ridge vents (minimum 1 sq ft per horse, plus additional area for tack rooms, wash racks, and aisles)
• Install vented cupolas if needed for additional exhaust capacity
• Install 1-2 circulation fans
• Seal air leaks that short-circuit airflow

Phase 2: Flooring ($3,000–$6,000)

• Pour concrete over existing dirt floors
• Install ComfortStall mats for cushioning
• Add proper drainage if needed

Phase 3: Layout Improvements ($2,000–$5,000)

• Build external hay storage
• Raise ceiling height where possible
• Modify stall doors for better ventilation

Real-World Retrofit Results

My Louisiana Barn (2024):

• Starting point: 4-stall barn, dirt floors, 8-ft ceilings, 15 ppm ammonia
• Month 1: Added 10 sq ft ridge vents ($1,000) → Ammonia dropped to 10 ppm
• Month 3: Raised ceilings to 12 ft, installed rubber mats ($6,000 total) → Ammonia hit 3 ppm
• Results: Zero coughs, 40% less bedding needed, horses more comfortable

Arizona Quarter Horse Barn (2023):

• Challenge: 6-stall facility fighting dust storms
• Solutions: MERV 11 filters, gravel base, shade structures ($4,000 total)
• Results: 85% dust reduction, vet visits cut in half

Avoid These Costly Design Mistakes

Learn from others’ expensive errors:

The “Sealed Barn” Trap

Many owners think tighter is better for climate control. Wrong. Even in winter, you need a minimum of 4 ACH (Air Exchange Rate) to prevent ammonia buildup. Sealed barns create respiratory disasters.

Overhead Hay Storage

Convenient but deadly for air quality. Hay dust falls continuously, increasing particulate levels by 400%. Always store hay separately.

Ignoring Wind Patterns

Barns built without considering prevailing winds need 50% more fan power. A simple orientation change costs nothing but saves hundreds annually in electricity.

Undersized Ventilation

“It looks like enough airflow” isn’t engineering. Use the CFM formula. Undersized systems work harder, cost more to operate, and still fail to protect horses.

Emergency Preparedness and Monitoring

Power Outage Protocols

• Immediate: Open all doors and windows
• Backup: Deploy battery-powered fans (BiltHard, $100)
• Extended: Use generators (Honda EU2200i, $1,100) to maintain minimal ventilation

Critical: Never use propane or gas generators inside barns. Position generators at least 20 feet away with exhaust pointing away from air intakes.

Air Quality Testing

Professional Tools:

• Basic ammonia detector ($235)
• Digital hygrometer for humidity ($35)
• Smoke pen kit with smoke sticks for airflow testing ($25)

DIY Testing: Place a shallow water dish in each stall overnight. A strong ammonia smell in the morning indicates dangerous levels (>10 ppm).

Target Ranges:

• Ammonia: <3 ppm (excellent), 3–7 ppm (acceptable), >15 ppm (immediate action needed)
• Air Movement: 1–3 mph at horse level
• Dust: No visible particles in normal lighting

Read about the benefits of reducing ammonia in horse barns.

Testing Schedule:

• Daily visual checks for dust and odors
• Weekly ammonia testing in problem areas
• Monthly fan maintenance and system review

Return on Investment: The Numbers That Matter

Quality barn design isn’t an expense — it’s an investment that pays dividends in horse health and reduced costs.

Investment Level	Upfront Cost	Annual Savings	Payback Period
Basic Retrofit	$2,500	$2,000	15 months
Complete Design	$8,000	$4,500	21 months

Where Savings Come From:

• Reduced vet bills: $1,200–$3,600/horse/year
• Less bedding replacement: $400–$800/horse/year
• Improved performance and longevity: $2,000+/horse/year
• Lower facility insurance premiums: $200–$500/year

The Hidden Cost of Poor Air Quality

According to Equine Guelph research, respiratory issues cost owners $2,400–$8,000 annually per affected horse in:

• Emergency vet calls and treatments
• Reduced performance and training setbacks
• Increased bedding and maintenance costs
• Lost opportunity costs from unhealthy horses

Quality barn design eliminates most of these expenses while improving horses’ quality of life.

Your Next Steps

Building or retrofitting for optimal air quality doesn’t have to be overwhelming. Start with these priorities:

Immediate Actions (This Week)

1. Test current ammonia levels using the water dish method
2. Check NOAA wind data for your location
3. Measure your barn dimensions and calculate required CFM
4. Identify the biggest air quality problem (dust, ammonia, or humidity)

Short-Term Improvements (1-3 Months)

1. Install ridge vents or upgrade existing ones
2. Add circulation fans if needed
3. Modify stall doors for better ventilation
4. Move hay storage out of the main barn

Long-Term Planning (6-12 Months)

1. Plan flooring upgrades to concrete + mats
2. Consider ceiling height modifications
3. Design external hay and equipment storage
4. Establish regular monitoring and maintenance schedules

Frequently Asked Questions

Conclusion

I’ve learned that a successful approach to respiratory health begins with a focus on horse barn design for air quality, not just the medicine cabinet. The principles in this guide — climate-specific planning, calculated ventilation, strategic layout, and quality materials — prevent the expensive respiratory problems that plague poorly designed barns.

My Louisiana retrofit proved these concepts work in the real world. By cutting ammonia from 15 ppm to 3 ppm through smart design changes, I eliminated chronic coughs and created a healthier environment for horses and humans alike.

Start with your biggest air quality challenge, whether that’s humidity, dust, or ammonia. Use the calculations and strategies in this guide to design solutions that actually work. Your horses’ respiratory health — and your bank account — will thank you.

Ready to get started? Download our Barn Design Checklist for a step-by-step planning tool, and explore daily management strategies in our Ultimate Guide to Controlling Dust, Odors, and Ammonia.
